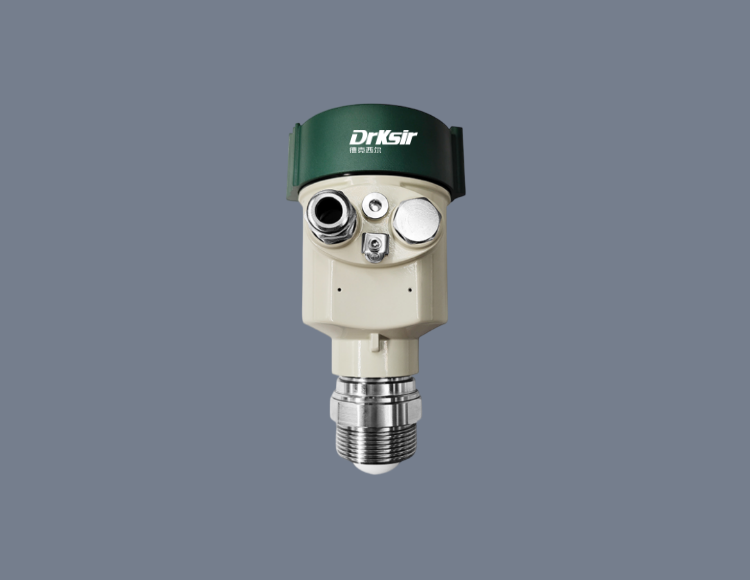

MDR-800XC 小透镜款80G调频雷达液位计

        80G调频雷达液位计是专为复杂工业测控场景设计的高精度物位测量设备，可适配各类防爆等级（Ex d ia IIC T6 Gb等）的危险场所，广泛应用于液位、料位及距离的连续测控。凭借非接触式微波探测技术，该仪表无需与被测介质直接接触，相较于传统接触式测量仪器，更能适应高粉尘、强蒸汽、高低温交变、腐蚀性气体侵蚀、介质飞溅搅拌等恶劣工况，且具备无介质污染、维护频次低、运行可靠性高、使用寿命长等核心优势。其应用场景覆盖新能源（锂电材料、光伏硅料）、石油化工、矿山选矿、电力（核电、光伏电站）、市政水务、环保治理（垃圾渗滤液处理）、制药化工、食品加工（烘焙原料、粮油仓储）、港口仓储等行业；同时可拓展应用于工业物料堆高检测、罐体容量计量、明渠水位监测、道路限高预警、防汛水文测报、集装箱高度检测等特殊测控需求场景。

        The 80G frequency modulation radar level gauge is a high-precision level measurement device specially designed for complex industrial measurement and control scenarios. It can be adapted to various explosion-proof grades (such as d, ia, IIC, T6Gb, etc.) in hazardous locations and is widely used in continuous measurement and control of liquid level, material level and distance. With non-contact microwave detection technology, this instrument does not need to come into direct contact with the medium being measured. Compared with traditional contact measuring instruments, it is more adaptable to harsh working conditions such as high dust, strong steam, alternating high and low temperatures, corrosive gas erosion, and medium splashing and stirring. Moreover, it has core advantages such as no medium pollution, low maintenance frequency, high operational reliability, and long service life. Its application scenarios cover industries such as new energy (lithium battery materials, photovoltaic silicon materials), petrochemicals, mining and mineral processing, power (nuclear power, photovoltaic power stations), municipal water affairs, environmental protection (landfill leachate treatment), pharmaceuticals and chemicals, food processing (baking raw materials, grain and oil storage), and port storage. It can also be extended and applied to special measurement and control requirements scenarios such as industrial material stacking height detection, tank capacity measurement, open channel water level monitoring, road height limit early warning, flood control hydrological reporting, and container height detection.MDR-800CD 80G调频雷达MDR-800CD 80G液位计工作原理/The working principle of 80G frequency-modulated radar level gauge:

        雷达液位计核心依托脉冲多普勒雷达测量原理，由仪表内置的高频发射模块驱动天线向被测介质表面发射窄脉冲微波信号。微波信号以光速在空间中传播，当接触到被测介质（液体、固体颗粒、浆料等）表面时，因介质介电常数与空气存在差异，会发生反射现象，反射后的回波信号被天线接收并传输至信号处理模块。
        信号处理模块对发射脉冲与接收回波的时间差进行精准计算，结合微波传播速度（恒定光速），通过核心算法换算得出测量距离。其核心计算公式为：S = C×T/2（其中S为雷达探头至介质表面的距离，C为微波传播速度，T为微波信号往返传播时间）。
        由于发射的微波脉冲存在固有信号宽度，在距离探头极近的区域内，发射脉冲与反射回波会发生叠加干扰，导致该区域内的信号无法被有效识别，此区域即为测量盲区。盲区范围与仪表发射频率、天线设计相关，该产品通过优化天线结构与信号滤波算法，可将盲区控制在极小范围，适配小量程、近距离的精准测量需求。
        需特别说明的是，微波信号传播不受环境温度、湿度、气压及粉尘浓度变化的影响，无需额外增设温湿度补偿装置；仅在极端高低温（-40℃~250℃）工况下，仪表内置的腔体温度校准模块会自动对信号进行微调，确保全工况下的测量精度稳定。

        The core of the radar level gauge relies on the pulse Doppler radar measurement principle. The high-frequency transmission module built into the instrument drives the antenna to emit narrow pulse microwave signals to the surface of the measured medium. Microwave signals travel in space at the speed of light. When they come into contact with the surface of the medium being measured (such as liquids, solid particles, slurries, etc.), due to the difference in dielectric constant between the medium and air, a reflection phenomenon occurs. The reflected echo signal is received by the antenna and transmitted to the signal processing module.
        The signal processing module precisely calculates the time difference between the transmitted pulse and the received echo, combines the microwave propagation speed (constant light speed), and converts it through the core algorithm to obtain the measurement distance. The core calculation formula is: S = C×T/2 (where S is the distance from the radar probe to the medium surface, C is the microwave propagation speed, and T is the round-trip propagation time of the microwave signal).
        Due to the inherent signal width of the emitted microwave pulse, in the area extremely close to the probe, the emitted pulse and the reflected echo will undergo superimposed interference, resulting in the signal in this area being unable to be effectively identified. This area is the measurement blind zone. The blind zone range is related to the instrument's transmission frequency and antenna design. This product can control the blind zone within an extremely small range by optimizing the antenna structure and signal filtering algorithm, meeting the precise measurement requirements of small ranges and short distances.
        It should be particularly noted that the propagation of microwave signals is not affected by changes in environmental temperature, humidity, air pressure or dust concentration, and there is no need to add additional temperature and humidity compensation devices. Only under extreme high and low temperature conditions (-40℃ to 250℃), the built-in cavity temperature calibration module of the instrument will automatically fine-tune the signal to ensure stable measurement accuracy under all working conditions.

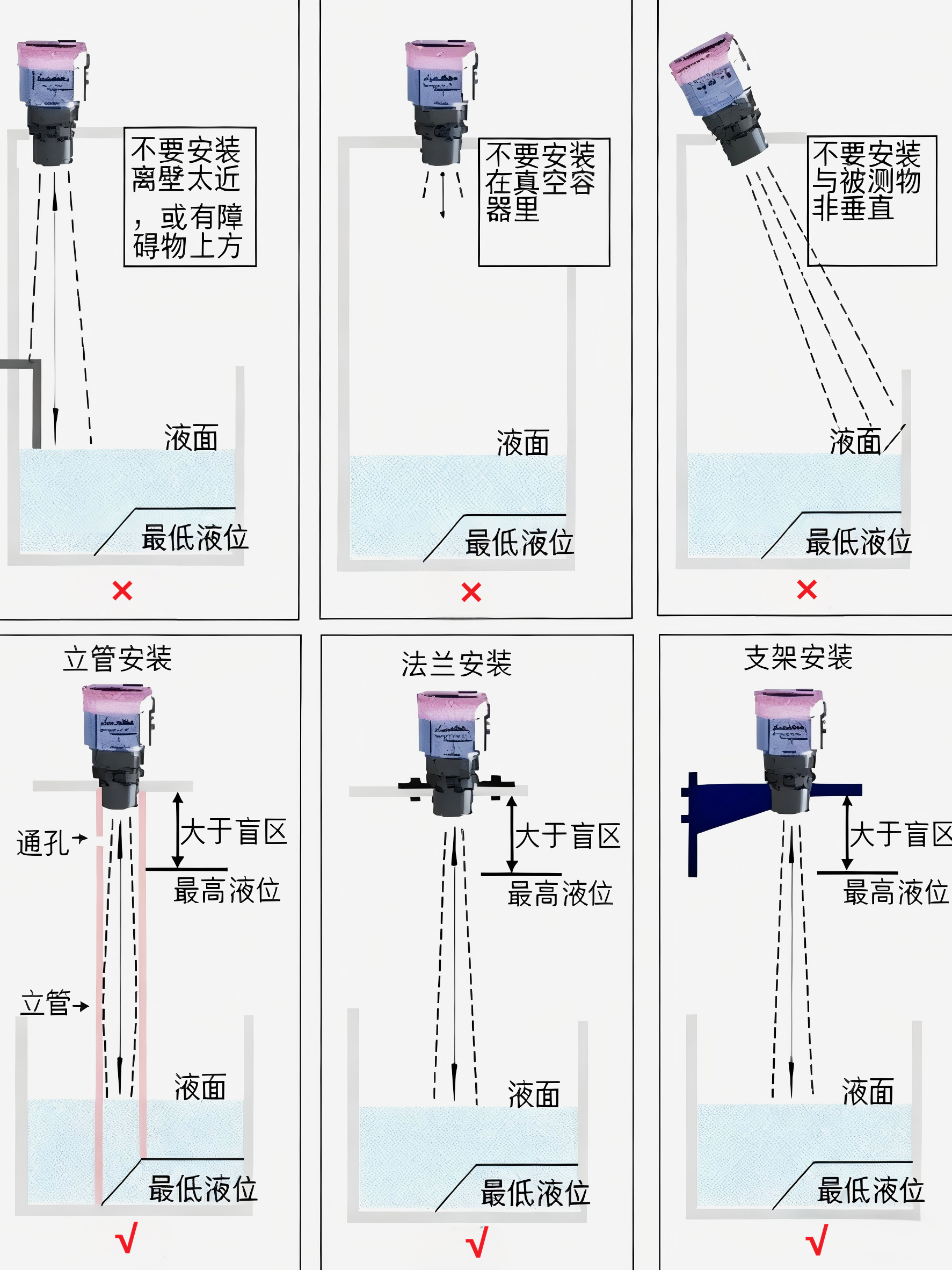

MDR-800CD 80G调频雷达液位计安装方式/Installation method of 80G frequency modulation radar level gauge:

        雷达液位计安装方式灵活，可根据现场工况（敞开/密闭、罐体/池体/料仓）选择对应方案，核心安装原则为：雷达天线发射面需垂直于被测介质表面，且发射路径无遮挡、无障碍物（如搅拌桨、进料管、爬梯等），避免微波信号被遮挡或反射干扰。
        1.敞开式场景（如露天水池、明渠、敞开料仓）：采用支架式安装，利用仪表自带的安装底座与配套螺栓，将仪表固定在预设支架上，调节支架角度确保天线垂直于液面/料面。
        2.密闭式场景（如压力储罐、密闭料仓）：采用法兰式安装，在罐体顶部预设安装口处安装配套法兰，将仪表通过法兰螺栓紧固，确保安装接口密封良好（适配工况压力≤1.6MPa）；若安装空间受限，可选用侧装式法兰支架，调整天线角度确保信号覆盖被测区域。
        3.特殊场景（如小口径罐体、粘稠介质储罐）：采用插入式安装，选择适配口径的安装套管，将仪表探头插入套管内并固定，套管需延伸至罐体内部合适位置，避免介质粘附遮挡探头。

        The installation method of the radar level gauge is flexible. According to the on-site working conditions (open/closed, tank/pool/silo), the corresponding scheme can be selected. The core installation principle is: the transmitting surface of the radar antenna should be perpendicular to the surface of the measured medium, and the transmitting path should be unobstructed and free of obstacles (such as stirring blades, feeding pipes, ladders, etc.) to avoid the microwave signal being blocked or reflected and interfered.
        1. Open scenarios (such as open-air water tanks, open channels, and open silos) : Adopt a bracket installation method. Use the installation base and matching bolts provided by the instrument to fix the instrument on the preset bracket. Adjust the Angle of the bracket to ensure that the antenna is perpendicular to the liquid surface/material surface.
        2. Closed scenarios (such as pressure storage tanks and closed silos) : Flange installation is adopted. Install the matching flange at the preset installation opening on the top of the tank body, and fasten the instrument through the flange bolts to ensure good sealing of the installation interface (suitable working condition pressure ≤1.6MPa). If the installation space is limited, a side-mounted flange bracket can be selected, and the antenna Angle can be adjusted to ensure that the signal covers the measured area.
        3. Special scenarios (such as small-diameter tanks and viscous medium storage tanks) : Insert installation is adopted. Select an installation sleeve of the appropriate diameter, insert the instrument probe into the sleeve and fix it. The sleeve should extend to an appropriate position inside the tank to prevent the medium from adhering and blocking the probe.

MDR-800CD 80G调频雷达液位计性能特点/Performance features of 80G Frequency Modulation Radar Level gauge:

        1.智能抗干扰能力突出：搭载自适应信号滤波算法，可自动过滤搅拌扰动、介质泡沫、浮渣、蒸汽等产生的杂波信号，精准识别有效回波；支持自定义液位上下限阈值、滞后量调节，配备高亮LCD数显屏，实时显示液位数值、信号强度及设备运行状态，直观便捷。
        2.多信号输出适配性强：标准配置4-20mA模拟量输出、2路继电器开关量输出，可选配RS485（Modbus-RTU协议）数字通讯接口，可无缝对接PLC、DCS控制系统及工业物联网平台，实现远程数据监控、参数配置及联动控制，适配智能化工厂建设需求。
        3.高强度防护与耐腐设计：外壳采用316L不锈钢+工程塑料复合结构，防护等级达IP67/IP68，具备优异的防水、防尘、防腐蚀性能；可耐受各类酸碱盐溶液、有机溶剂、腐蚀性气体侵蚀，适配强腐蚀工况下的长期稳定运行，且核心部件无介质析出，符合食品级、制药级卫生标准。

        1. Outstanding intelligent anti-interference capability: Equipped with an adaptive signal filtering algorithm, it can automatically filter out noise signals generated by stirring disturbances, medium foam, scum, steam, etc., and accurately identify effective echoes. It supports custom adjustment of upper and lower limit thresholds and hysteresis of liquid level, and is equipped with a high-brightness LCD digital display screen to show the liquid level value, signal strength and equipment operation status in real time, which is intuitive and convenient.
        2. Strong multi-signal output adaptability The standard configuration includes 4-20mA analog output and 2-channel relay switch output. It can be optionally equipped with RS485 (Modbus-RTU protocol) digital communication interface, which can be seamlessly integrated with PLC, DCS control systems and industrial Internet of Things platforms to achieve remote data monitoring, parameter configuration and interlocking control, meeting the requirements of intelligent factory construction.
        3. High-strength protection and corrosion-resistant design: The casing is made of 316L stainless steel and engineering plastic composite structure, with a protection level of IP67/IP68, featuring excellent waterproof, dustproof and anti-corrosion performance. It can withstand the erosion of various acid, alkali, salt solutions, organic solvents and corrosive gases, and is suitable for long-term stable operation in highly corrosive working conditions. Moreover, there is no medium leaching from the core components, and it meets food grade and pharmaceutical grade hygiene standards.

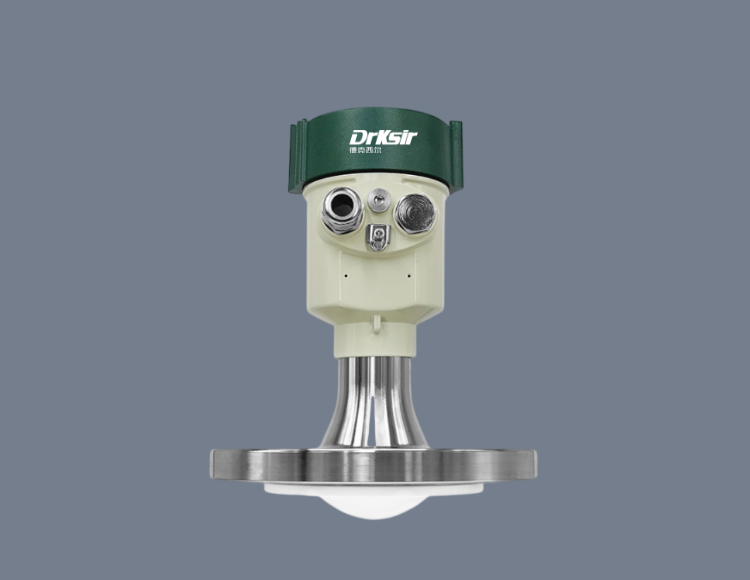

MDR-800XC 小透镜款80G调频雷达液位计技术参数/Technical parameters of 80G Frequency Modulation Radar Level gauge with small lens:

规格/Specification：80G小透镜款
频率范围/Frequency range：76~81GHZ
过程连接/Process connection：法兰，螺纹/flange, thread
介质温度/Medium temperature：-30°~80°
过程压力/Process pressure：-0.1~0.3Mpa
发射角度/Launch Angle：3°
测量精度/Measurement accuracy：±1mm
测量范围/Measurement range：120米
防护等级/Protection grade：IP67
外壳材质/Shell material：铝铸/不锈钢/Aluminum casting/stainless steel
防爆等级/Explosion-proof grade：EX d ia IIC T6 Gb
供电范围/Power supply range：18-28VDC
蓝牙/Bluetooth：可选配/Optional
输出信号/Output signals：4~20mA/HART(两线/四线)RS485/Modbus
应用范围/Application scope：轻微腐蚀性液体，搅拌，水汽凝结/Slightly corrosive liquids, stirring, water vapor condensation
