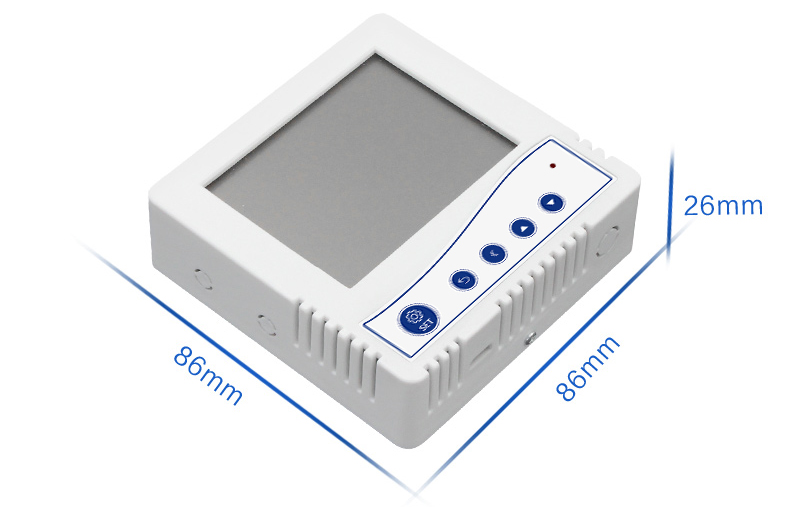

MDR-HT07标准86盒模拟量型温湿度传感器

        MDR-HT07标准86盒模拟量型温湿度传感器采用大屏液晶显示，配备工业接口4~20mA/0~10V/0~5V模拟量信号输出，可接入现场数显表、 PLC、 变频器、工控主机等设备。标准86盒挂孔，探头内置、外置可选，适合测量室内环境温湿度。

        The MDR-HT03 standard 86-box analog temperature and humidity sensor features a large-screen LCD display and is equipped with industrial interfaces for 4-20mA / 0-10V / 0-5V analog signal output. It can be connected to on-site digital display meters, PLCS, frequency converters, industrial control hosts and other devices. Standard 86-box mounting holes, with built-in and external probes available for selection, suitable for measuring indoor environmental temperature and humidity.
MDR-HT07标准86盒模拟量型温湿度传感器性能参数/Performance parameters of standard 86-box analog temperature and humidity sensor

        ●温度范围/Temperature range：默认-40℃~+80℃
        ●湿度范围/Humidity range：0%RH-100%RH
        ●温度精度/Temperature accuracy：默认±3%RH(60%RH,25℃)
        ●湿度精度/Humidity accuracy：±0.5℃（25℃）
        ●温度稳定性/Temperature stability：≤0.1℃/y
        ●湿度稳定性/Humidity stability：≤1%RH/y
        ●供电方式/Power：DC 10-30V
        ●输出信号/Output signal：4~20mA；0~5V/0~10V
        ●安装方式/Installation method：壁挂式

MDR-HT07标准86盒模拟量型温湿度传感器功能特点/Functional features of standard 86-box analog temperature and humidity sensor

        ●精准可靠： 采用进口高精度测量单元及工业级微处理器芯片，搭配进口高精度温度传感器，确保测量结果精准可靠，具备优异的长期稳定性和互换性。
        ●供电灵活： 支持10~30V宽电压范围直流供电，适应性强，规格齐全满足不同需求。
        ●安装便捷： 设备为标准86盒挂孔，探头内置、外置可选，适合测量室内环境温湿度，安装简便高效。
        ●标准通讯： 采用标准工业接口4~20mA/0~10V/0~5V模拟量信号输出，可接入现场数显表、 PLC、 变频器、工控主机等设备，兼容性极佳。

        ● Precise and reliable: Equipped with imported high-precision measurement units and industrial-grade microprocessor chips, and paired with imported high-precision temperature sensors, it ensures accurate and reliable measurement results, featuring excellent long-term stability and interchangeability.

        ● Flexible power supply: Supports DC power supply within a wide voltage range of 10 to 30V, with strong adaptability and a complete range of specifications to meet different needs.

        ● Easy installation: The equipment is a standard 86-box hanging hole. The probe can be either built-in or external. It is suitable for measuring the temperature and humidity of indoor environments and is easy and efficient to install.

        ● Standard communication: It adopts standard industrial interface 4-20mA / 0-10V / 0-5V analog signal output, which can be connected to on-site digital display meters, PLCS, frequency converters, industrial control hosts and other devices, with excellent compatibility.

温度范围/Temperature range：默认-40℃~+80℃
湿度范围/Humidity range：0%RH-100%RH
温度精度/Temperature accuracy：默认±3%RH(60%RH,25℃)
湿度精度/Humidity accuracy：±0.5℃（25℃）
温度稳定性/Temperature stability：≤0.1℃/y
湿度稳定性/Humidity stability：≤1%RH/y
供电方式/Power：DC 10-30V
输出信号/Output signal：4~20mA；0~5V/0~10V
安装方式/Installation method：壁挂式
应用场景/Application scenario：广泛应用于通讯机房、智能家居、仓库楼宇等场景下的温湿度监测。
