MDR-WO-05 工位状态智能监测终端

         产品简介/Product introduction

        工位状态智能监测终端安装于办公桌下面，通过传感器采集工位状态信息，并将采集到的状态信息通过无线网络发送至监控中心，监控中心实时更新工位状态，用户可使用Web网页或者APP产看当前工位是否被占用。该传感器有ZigBee、LoRaWAN、NB-IOT三种无线通讯方式供选择。

        The station status intelligent monitoring terminal is installed under the desk, collects the station status information through the sensor, and sends the collected status information to the monitoring center through the wireless network, the monitoring center updates the station status in real time, and the user can use the Web page or APP to see whether the current station is occupied. The sensor has ZigBee, LoRaWAN, NB-IOT three wireless communication methods to choose from.

        工作原理/Working principle

        工位状态智能监测终端安装于办公桌下面，通过雷达来检测运动目标，从而实现工位状态信息的检测，再以无线传输方式将工位状态信息发送到服务器。该产品使用外部5V供电，具有安装方便、检测准确率高，工作稳定等特点。

        The station status intelligent monitoring terminal is installed under the desk, detects the moving target by radar, so as to detect the station status information, and then sends the station status information to the server by wireless transmission. The product uses external 5V power supply, with easy installation, high detection accuracy, stable work and so on.

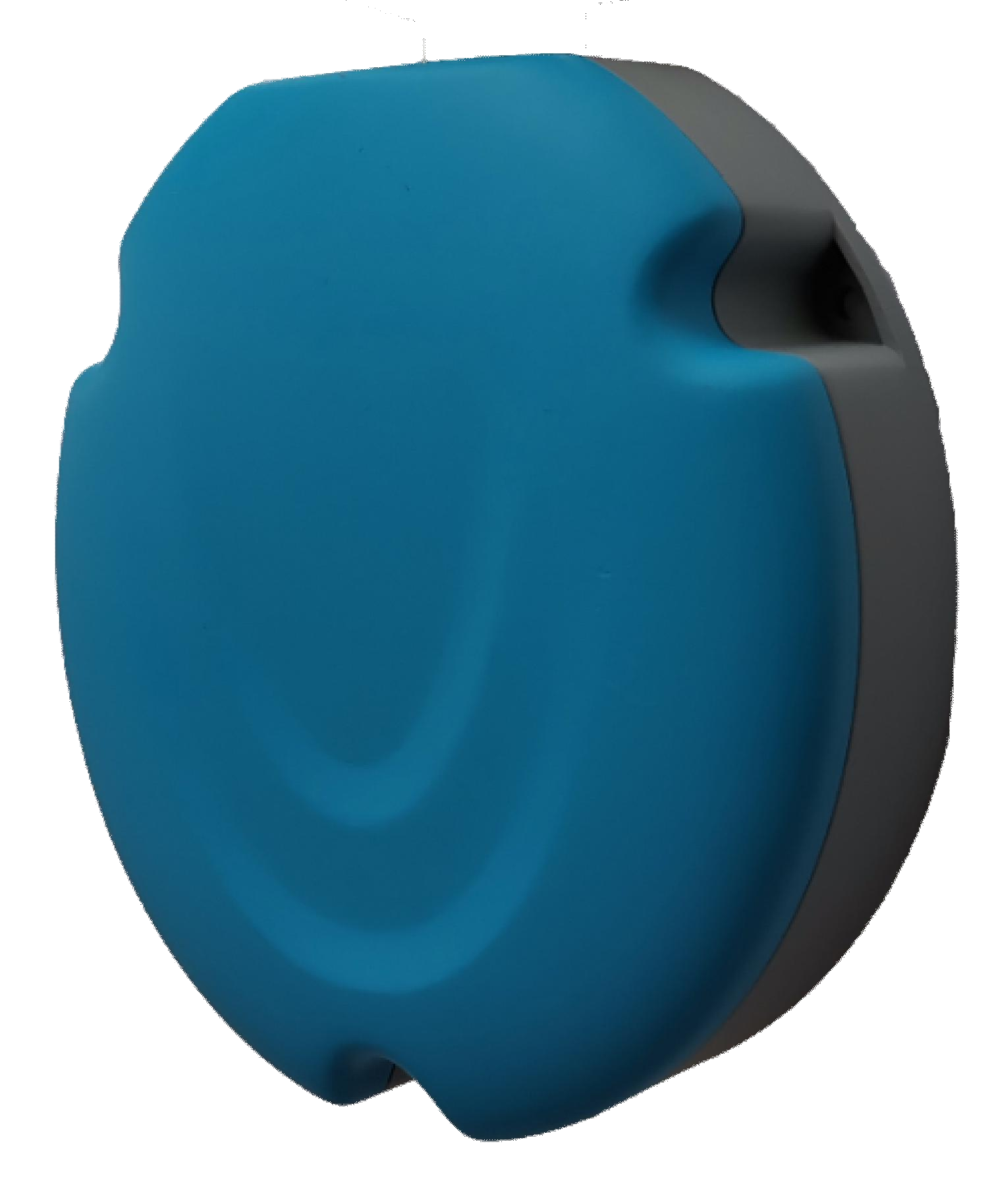

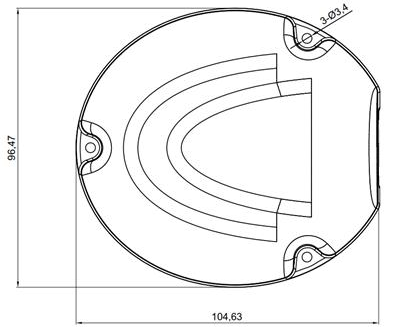

工位状态智能监测终端的产品外形和尺寸如图：
