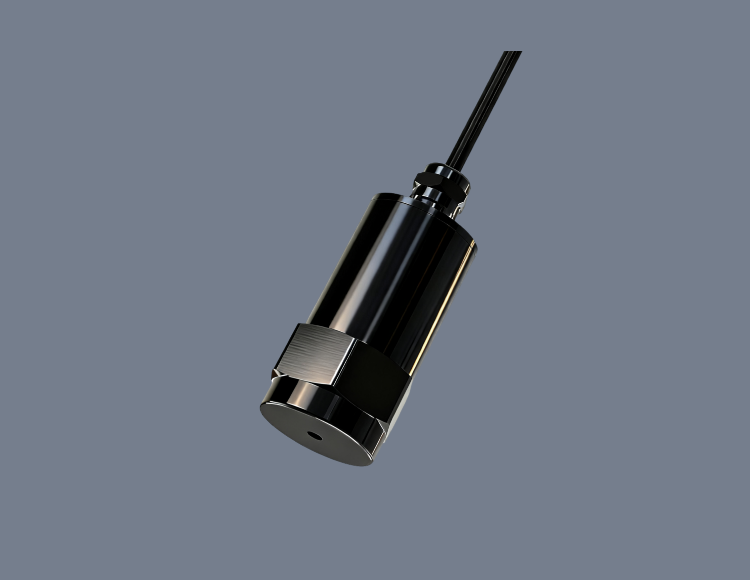

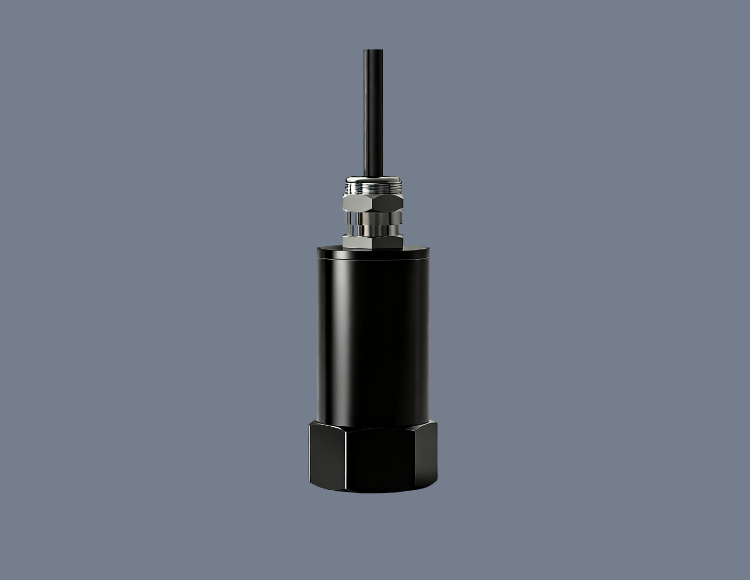

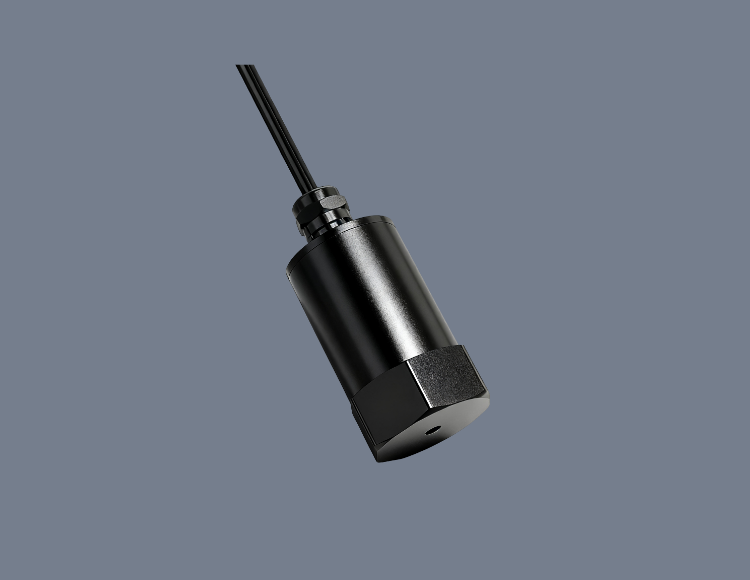

MDR-WZ-RS 485型温振传感器

        MDR-WZ-RS 485型温振传感器，内部集成高性能加速度传感器与温度传感器，内嵌高精度精密积分电路；搭载专属优化算法，能够针对机械设备X 轴、Y 轴、Z 轴三维方向的振动速度、振动位移、振动加速度等核心状态信息，进行全天候实时采集与精准监控，为设备健康诊断提供可靠数据支撑。

        The MDR-WZ-RS 485 type temperature and vibration sensor integrates a high-performance acceleration sensor and a temperature sensor internally and is embedded with a high-precision precision integrating circuit. Equipped with dedicated optimization algorithms, it can conduct all-weather real-time collection and precise monitoring of core state information such as vibration velocity, vibration displacement, and vibration acceleration in the three-dimensional directions of the X-axis, Y-axis, and Z-axis of mechanical equipment, providing reliable data support for equipment health diagnosis.

MDR-WZ-RS 485型温振传感器性能参数/Performance parameters of 485 type temperature and vibration sensor

        ●温度范围/Temperature range：-40℃~+150℃（默认85℃）
        ●温度分辨率/Temperature resolution：0.1℃
        ●振动方向/Vibration direction：Z轴/X轴、Y轴、Z轴
        ●频率范围/Frequency range：10~1600Hz/10~5000Hz/10~12000Hz
        ●振动测量精度/Vibration accuracy：±1.5% FS（@1kHz，10mm/s）
        ●振动分辨率/Vibration resolution：0.1mm/s
        ●信号输出/Signal output：RS485
        ●线缆长度/Cable：2m（默认）
        ●供电电压/Power：DC10~30V
        ●平均功耗/Power consumption：0.3W
        ●安装方式/Installation method：螺纹、磁吸
        ●防护等级/Protection grade：IP67
        ●应用场景/Application scenario：广泛应用于工业机械设备的温度和振动监测。

MDR-WZ-RS 485型温振传感器功能特点/Functional features of 485 type temperature and vibration sensor

        ●强适应性： 一体铝合金外壳，IP67防护等级，适应复杂的工业环境。
        ●多种安装方式： 设备可采用螺纹安装、磁吸安装、黏胶安装、底座安装等多种方式。

        ● Strong adaptability: Integrated aluminum alloy housing, IP67 protection grade, suitable for complex industrial environments.

        ● Multiple installation methods: The equipment can be installed in various ways such as threaded installation, magnetic attraction installation, adhesive installation, and base installation.

温度范围/Temperature range：-40℃~+150℃（默认85℃）
温度分辨率/Temperature resolution：0.1℃
振动方向/Vibration direction：Z轴/X轴、Y轴、Z轴
频率范围/Frequency range：10~1600Hz/10~5000Hz/10~12000Hz
振动测量精度/Vibration accuracy：±1.5% FS（@1kHz，10mm/s）
振动分辨率/Vibration resolution：0.1mm/s
信号输出/Signal output：RS485
线缆长度/Cable：2m（默认）
供电电压/Power：DC10~30V
平均功耗/Power consumption：0.3W
安装方式/Installation method：螺纹、磁吸
防护等级/Protection grade：IP67
应用场景/Application scenario：广泛应用于工业机械设备的温度和振动监测。
