MDR-3635T MODBUS型三维电子罗盘-倾角补偿采用MEMS工艺，融合n阶滤波融合算法，确保高精度测量；可以实现俯仰角（X轴角）、横滚角（Y轴角）小于40°情况下，方位角（也称航向角）的测量，方位角精度为1°。产品根据地磁原理测量，数据协议为MODBUS RTU型，通信硬件默认为485型，特别适合与电脑上位机、单片机之间通信。符合工业品标准，工作温度范围-40~+85℃，支持定制开发。
MDR-3635T MODBUS 3D electronic compas-inclination compensation adopts MEMS process and integrates n-order filtering fusion algorithm to ensure high precision measurement. The azimuth (also known as heading Angle) can be measured when the pitch Angle (X-axis Angle) and roll Angle (Y-axis Angle) are less than 40°, and the azimuth accuracy is 1°. The product is measured according to the geomagnetic principle, the data protocol is MODBUS RTU type, and the communication hardware is 485 type by default, which is especially suitable for communication with computer upper computer and single chip microcomputer. Meet industrial standards, operating temperature range -40~+85℃, support custom development.
技术参数/Technical parameter：
●三轴角度检测 /Three-axis Angle detection | ●0~360°量程（可选）/0~360° range (Optional |
●1°精度级，分辨率0.1° /1° precision class, resolution 0.1° | ●MODBUS RTU通信协议/MODBUS RTU communication protocol |
●默认IP67防水等级/Default IP67 waterproof rating | ●2400~115200（可选）波特率/2400 to 115200 (Optional) Baud rate |
●DC5V或9~36V供电/DC5V or 9~36V power supply | ●>20000g高抗震性/>20000g High shock resistance |

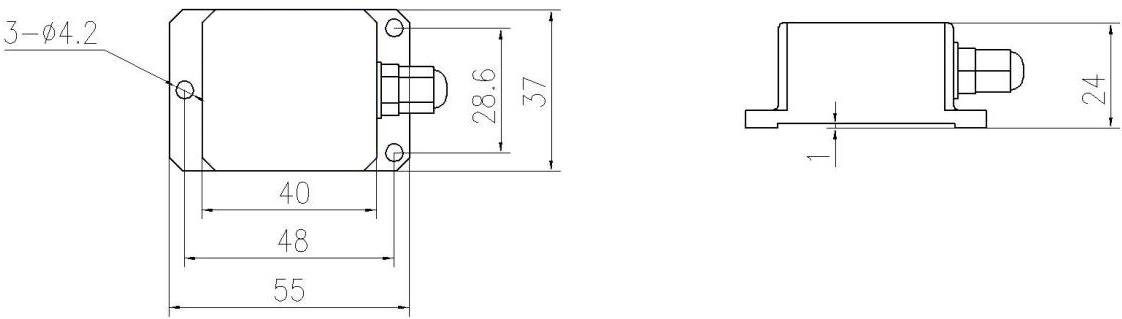

●重量80g/Weight 80g | ●(L55*W37*H24mm) 尺寸（可定制/(L55*W37*H24mm) Size (customizable) |
●5-50Hz输出频率（可选）/5-50Hz Output frequency (optional) | ●-40～+85℃宽温工作/-40 ~ +85℃ wide temperature operation |
应用场景/Application scenario：
●机械调平 /Mechanical leveling | ●桥梁检测 /Bridge inspection |
●货架检测 /Shelf inspection | ●设备检测控制 /Equipment inspection and control |
●山体监测 /Mountain monitoring | ●旋挖钻机检测 /Rotary drilling rig inspection |
●杆、塔监测 /Pole and tower monitoring | ● 基坑检测/Foundation pit inspection |
●光伏工程监测 /Photovoltaic engineering monitoring | ●围栏监测 /Fence monitoring |
●建筑物检测 /Building inspection | ●其他角度类检测及控制 /Other Angle class detection and control |
电气连接/Electrical connection：
安装方式/Installation mode：
注意事项/Matters needing attention：
尽管电子罗盘能够补偿磁干扰，但是用户应该选择一个磁干扰小的环境来 安装和使用。尽可能的选择远离铁、镍、磁铁、发动机和其他磁性物质放置 。如果 周围有这些磁介质，请至少需要维持 0.5m 远的距离。为保证产品达到测量效果,安 装时须采用非磁性螺丝刀和非铁质螺丝。
Although the electronic compass can compensate for magnetic interference, users should choose an environment with low magnetic interference to install and use. Choose to place away from iron, nickel, magnets, engines and other magnetic materials as much as possible. If there are these magnetic media around, please maintain a distance of at least 0.5m. In order to ensure that the product achieves the measurement effect, non-magnetic screwdrivers and non-iron screws must be used when installing.
务必严格避免磁铁、电动机等强磁物质靠近罗盘 10cm 之内，这可能会造成罗 盘的测量精度不可逆下降。 尽管罗盘能够在稳定的磁环境下补偿磁偏差，但是它不能补偿变化的磁干扰。例如：带直流电的电线产生磁场，如果直流电改变，磁场大小也将改变。电池是另一个 变化的干扰源。每个安装位置磁场环境都是不同的，用户必须评估该操作环境下的安装可行性。
It is necessary to strictly avoid strong magnetic substances such as magnets and motors close to the compass within 10cm, which may cause the measurement accuracy of the compass to decline irreversibly. Although a compass can compensate for magnetic deviation in a stable magnetic environment, it cannot compensate for varying magnetic interference. For example, a wire with direct current generates a magnetic field, and if the direct current changes, the magnetic field size will also change. Batteries are another changing source of interference. The magnetic field environment is different for each installation location, and the user must evaluate the installation feasibility for that operating environment.

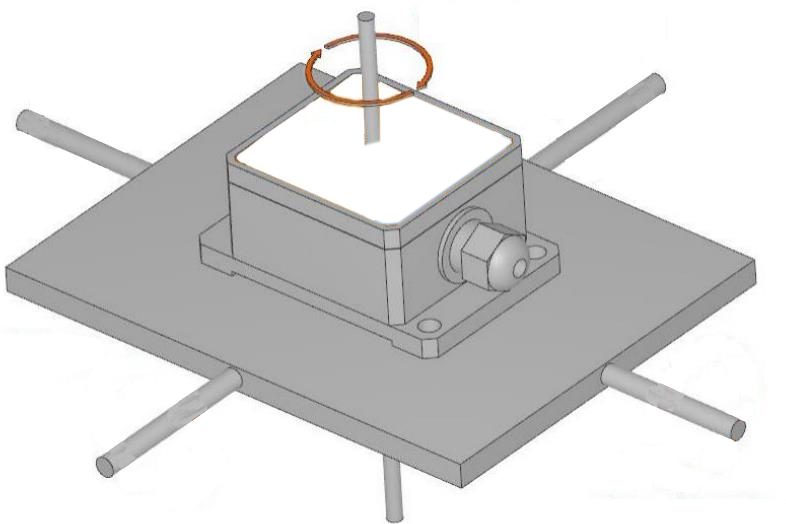

我们建议的安装方式：将电子罗盘安装在垂直竖起的铝（或者其他无磁性的材料） 制杆上（转动杆垂直于转动平台，尽量做到避免大的外界磁场干扰）。
Our proposed installation method: Install the electronic compass on a vertical upright aluminum (or other non-magnetic material) rod (the rotating rod is perpendicular to the rotating platform, as far as possible to avoid large external magnetic field interference).
