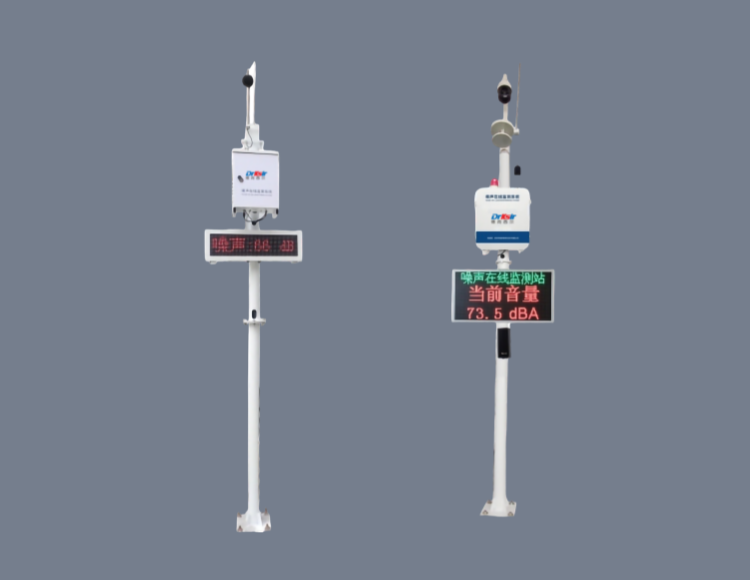

MDR-Z004建筑施工场景噪声监测仪核心测量模块符合2级声级计标准,通过物联网技术与现场端仪器 仪表进行互联互通,完成对环境噪声数据实时采集,并对采集数据统计分析,计算噪声值 ,是一种简易型的户外噪声自动监测系统。它由数据显示屏、噪声传感器、监控摄像头、 音柱、拾音器、数据采集统计分析软件、4G/5G无线传输模块、服务器云平台软件、微信客户端等部分组成,人性化表情变化设计、计测量范围大、功能强稳定性好,可超标 远程查看监控画面,并喊话现场停止噪音污染行为。
The core measurement module of MDR-Z004 noise detector for building construction scene conforms to the standard of level 2 sound level meter. Through the Internet of Things technology, it can interconnect with on-site instruments and instruments to complete real-time collection of environmental noise data, statistical analysis of the collected data, and calculation of noise value. It is a simple outdoor noise automatic monitoring system. It is composed of data display screen, noise sensor, monitoring camera, sound column, pickup, data acquisition statistical analysis software, 4G/5G wireless transmission module, server cloud platform software, wechat client and other parts, humanized expression change design, large measuring range, strong function and good stability, can exceed the standard remote view monitoring screen. And called on the scene to stop noise pollution behavior.
MDR-Z004建筑施工场景噪声监测仪性能参数/Performance parameters of construction scene noise detector
●测量范围/Measuring range:30dB~130dB
●分辨率/Resolution:0.1dB(A)
●供电方式/Power supply mode:市电 AC220V、太阳能供电系统/Mains AC220V, solar power supply system
●传输方式/Transmission mode:4G/5G全网通、RJ45有线网、RS485串口/4G/5G full network, RJ45 cable network, RS485 serial port
●显示方式/Monitoring parameter:P3.75 双色 LED 显示屏;分辨率:64*64/P3.75 two-color LED display; Resolution: 64*64

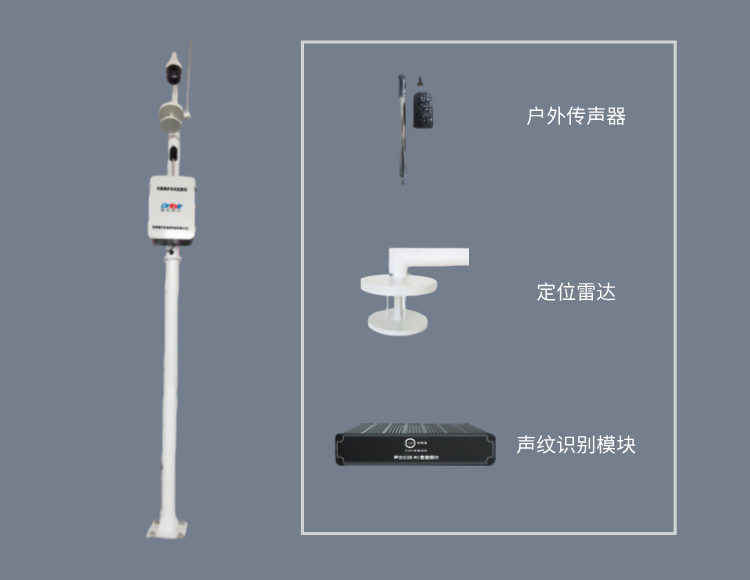

●远程喊话方式/Remote call mode:4 寸 200W 红外带抓拍高清摄像头;搭配扬声器与拾音器使用,实现 远程喊话功能/It can expand other related parameter collection functions, such as video surveillance, longitude and latitude, human flow, road traffic flow, weather monitoring, exceeding the standard recording return, voice print recognition and sound source positioning
MDR-Z004建筑施工场景噪声监测仪功能特点/Building construction scene noise detector function characteristics
●超标报警:设备可设置报警阈值,支持远程设定,当噪声数据超过该数值,设备自动报警并上传至监管平台,通过PC 端平台或移动微信端提醒监管人员,如设备端配备报警器,可自动联动报警器进行声光报警。/Excessive alarm: the device can set the alarm threshold, support remote setting, when the noise data exceeds the value, the device automatically alarm and upload to the supervision platform, through the PC platform or mobile wechat terminal to remind the supervisor, such as the device is equipped with an alarm, can automatically link the alarm for sound and light alarm.
●远程喊停:具备远程喊话功能,当监测数据超过阈值报警后,监管人员可从监控视频上查看现场情况,是否有进行处理 ,若超标一直未曾改善,监管人员可在APP上进行远程喊停操作,勒令现场停止噪声污染行为。/Remote stop call:With remote shout function, when the monitoring data exceeds the threshold alarm, the supervisor can view the scene situation from the monitoring video, whether it is processed
If the standard has not been improved, regulators can carry out remote stop operation on the APP and order the site to stop noise pollution.
●功能齐全,可实现数据超标变色(可选配),声光报警等功能/Complete functions, can achieve data standard discoloration (optional), sound and light alarm and other functions
●数据集采集、传输、发布显示于一体。通过集成高,灵活的方案,模块化部署,可以全方位满足不同场合使用需求/Data collection, transmission, publication display in one. Through the integration of high, flexible solutions, modular deployment, can fully meet the needs of different occasions
●LED无线信息发布平台:操作专业简捷、管理方便,传输稳定,可靠性高;可以传输文字等节目信息,不受距离限制,应用广泛;终端掉线上线后可以实现续传,节省流量/LED wireless information release platform: professional and simple operation, convenient management, stable transmission, high reliability; It can transmit program information such as text, without distance limitation, and is widely used; After the terminal is offline, it can realize continuous transmission, saving traffic
●24小时自动监测,无需人工干预,稳定可靠/24 hours automatic monitoring, no manual intervention, stable and reliable
●可通过设置报警条件进行噪声超标报警/The alarm of excessive noise can be set by setting alarm conditions
●结合WEB界面随时随地査看实时数据、统计曲线、等信息,高效管理声污染/View real-time data, statistical curves, and other information anytime and anywhere in the WEB interface to effectively manage sound pollution
